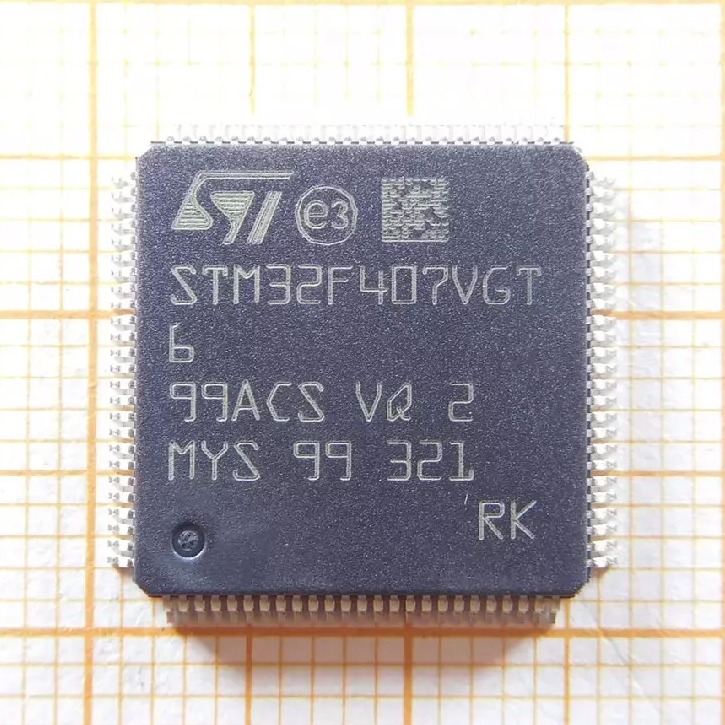

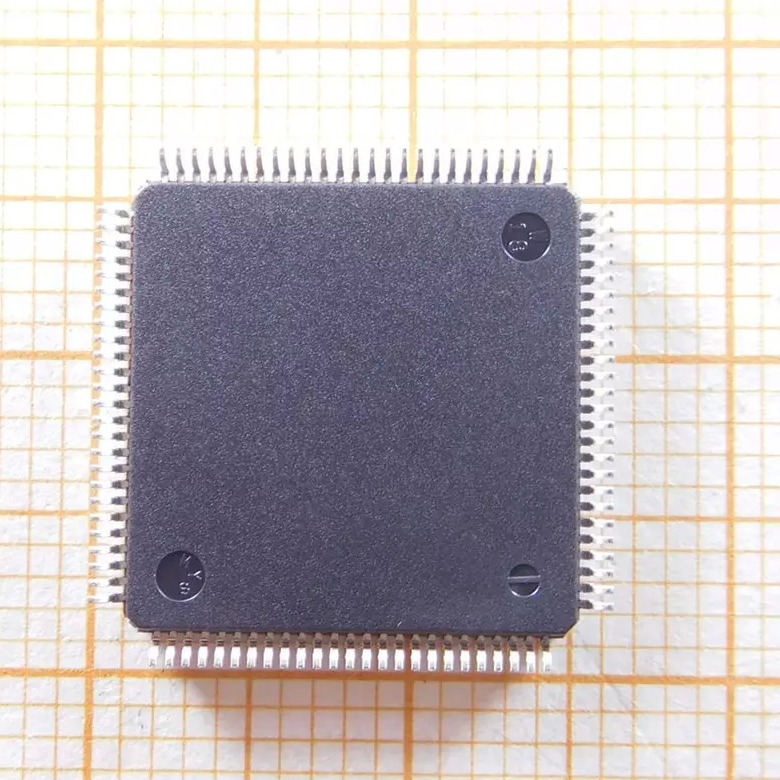

STM32F407VGT6 IC Electronic Components 32BIT MCU 1MB FLASH 100LQFP
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | STM32F407VGT6 | Description | 32BIT 1MB FLASH 100LQFP |
|---|---|---|---|
| Warranty | 365days | Quality | 100% Original Brand |
| Packaging Details | Standard Box | Condition | Original Product |
| Shipping By | China Post/DHL/FEDEX/UPS/TNT/DPEX/KAS | ||
| Highlight | STM32F407VGT6,STM32F407VGT6 IC Electronic Components,32BIT MCU |
||
Product Description
STM32F407VGT6 IC Electronic Components 32BIT 1MB FLASH 100LQFP
Product description
rated over
a −40°C to +105°C temperature
The STM32F405xx and STM32F407xx family is based on the high-performance ARM® Cortex™-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The Cortex-M4 core with FPU will be referred to as Cortex-M4F throughout this document.
Product details/Parameters
| Manufacturer | STMicroelectronics |
| Product Category | IC Chips |
| Series | STM32 F4 |
Packaging  |
Tray |
| Unit-Weight |
0.046530 oz |
| Mounting-Style | SMD/SMT |
| Tradename | STM32 |
| Package-Case | 100-LQFP |
| Operating-Temperature |
-40°C ~ 85°C (TA) |
| Supplier-Device-Package | 100-LQFP (14x14) |
| Number-of-I-O | 82 I/O |
| Speed | 168MHz |
| EEPROM-Size |
- |
| Core-Processor |
ARMR CortexR-M4 |
| RAM-Size |
192K x 8 |
| Program Memory |
FLASH |
| Peripherals |
Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Connectivity | CAN, DCMI, EBI/EMI, Ethernet, I2C, IrDA, LIN, SPI, UART/USART, USB OTG |
| Voltage-Supply-Vcc-Vdd |
1.8 V ~ 3.6 V |
| Core-Size | 32-Bit |
| Program-Memory-Size | 1MB (1M x 8) |
| Data-Converters |
A/D 16x12b, D/A 2x12b |
| Oscillator-Type |
Internal |
| Maximum Operating Temperature |
+ 85 C |
| Operating temperature range |
- 40 C |
| Operating-Supply-Voltage |
1.8 V to 3.6 V |
| Interface-Type |
CAN I2C I2S SPI UART |
| Core |
ARM Cortex M4 |
| Processor-Series |
ARM Cortex-M |
| Data-Bus-Width |
32 bit |
| Package-Case | LQFP-100 |
| Maximum-Clock-Frequency |
168 MHz |
| Number-of-ADC-Channels |
16 ADC Channels |
| Input/output |
82 I/O |
| Data-RAM-Size |
192 kB |
| Number-of-Timers-Counters |
10 Timer |
| ADC-Resolution |
12 bit |
| Data-RAM-Type |
SRAM |
